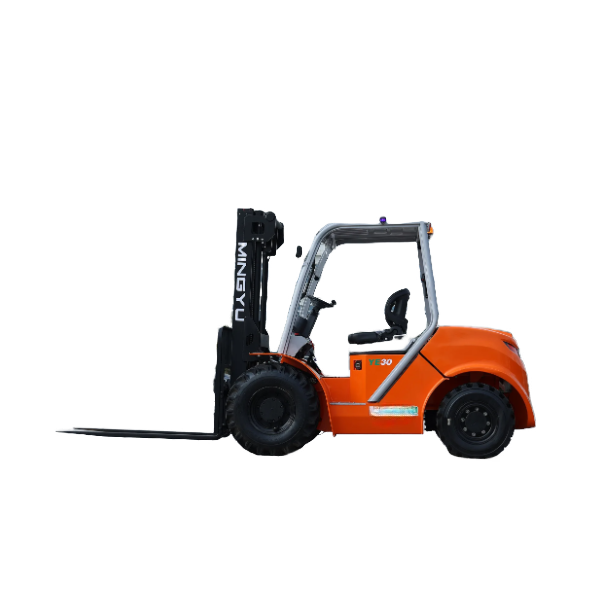

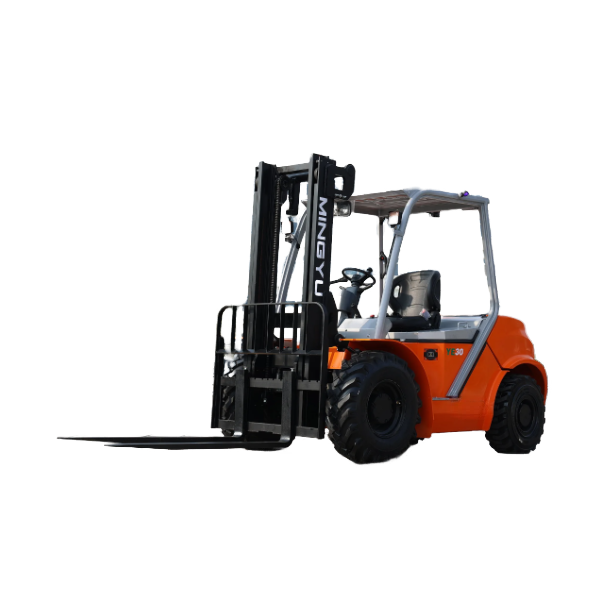

YE Series 3Ton Lithium Electric Off-Road Forklift Eco-Friendly Battery Powered Rough Terrain Forklift
The YE Series 3Ton Lithium Electric Off-Road Forklift represents the next generation of eco-friendly, high-efficiency rough terrain material handling equipment. Designed to replace traditional diesel forklifts in noise-sensitive and emissions-restricted environments, the YE Series combines a heavy-duty 3000 kg rated payload capacity with a high-capacity 153.6V/280Ah lithium battery system. Ranging over muddy unpaved roads, farmyards, and indoor-outdoor logistics zones, it delivers zero emissions, quiet operation, and instant electric torque for demanding tasks.
YE Series 3Ton Lithium Electric Off-Road Forklift Eco-Friendly Battery Powered Rough Terrain Forklift Specifications :
| Price | Contact us |
| Place of Origin | China |
| Min.Order Quantity | 1 |
| Payment Terms | OEM、ODM、OBM |
| Supply Ability | 1000 |
| Delivery Detail | one month |
YE Series 3Ton Lithium Electric Off-Road Forklift Eco-Friendly Battery Powered Rough Terrain Forklift Detail Introduction :
Our YE Series lineup highlights sustainable innovation engineered for maximum site productivity:
YE30 Lithium Battery Electric Off-Road Forklift (3.0 Ton Capacity): Powered by an advanced 153.6V/280Ah lithium-ion battery pack, featuring a 20 kW drive motor and a 22.6 kW oil pump motor. Built with a 3000 kg rated capacity, a 500 mm load center, a 3000 mm standard 2-stage lifting height, and a 250 mm high ground clearance, the YE30 delivers a top driving speed of 20 km/h with smooth, instant responsiveness.
| Category | Unit | YE30 Lithium Electric Model |
| Power Type | — | Lithium Battery |
| Rated Load Capacity | kg | 3000 |
| Load Center Distance | mm | 500 |
| Wheelbase | mm | 1800 |
| Overall Weight | kg | 4880 |
| Battery Voltage / Capacity | V / Ah | 153.6V / 280Ah |
| Drive Motor Power | kW | 20 |
| Oil Pump Motor Power | kW | 22.6 |
| Max. Driving Speed | km/h | 20 |
| Max. Lifting Speed | m/s | 0.4 |
| Standard Lifting Height | mm | 3000 (2-Stage) |
| Min. Ground Clearance | mm | 250 |
| Min. Turning Radius | mm | 3375 |
| Gantry Tilt Angle (Front/Rear) | degree | Front 10° / Back 12° |
| Dimensions Without Fork (L×W×H) | mm | 2820×1532×2230 |
| Front Tire Model (Pneumatic) | — | 11.5/80-15.3 |
| Rear Tire Model (Pneumatic) | — | 27X10-12/8.00 |
Product Highlights & Key Features
Eco-Friendly & Zero Emissions: Pure lithium-electric drive completely eliminates exhaust emissions and significantly reduces operational noise, making it ideal for farms, food handling, greenhouses, and eco-sensitive job sites.
High-Voltage Lithium Battery Power: Equipped with a high-capacity 153.6V/280Ah lithium battery, offering fast charging capability, long cycle life, and zero routine battery maintenance compared to lead-acid batteries.
Dual Motor Efficiency: Separate 20 kW drive motor and 22.6 kW hydraulic pump motor ensure dedicated power distribution for travel speed (20 km/h) and lifting speed (0.4 m/s) without power loss.
Exceptional All-Terrain Clearance: Features a 250 mm minimum ground clearance and large pneumatic off-road tires (Front 11.5/80-15.3, Rear 27X10-12/8.00) to cross mud, gravel, and rough surfaces effortlessly.
Compact Footprint & Agile Turning: Compact body dimensions (2820×1532×2230 mm without forks) and a 3375 mm turning radius allow smooth navigation through tight storage lanes and farm buildings.
Wide Gantry Vision & Tilt Angle: Gantry tilt angles of Front 10° / Back 12° provide optimal stability and load security on unpaved slopes.
Product Applications
Agriculture & Greenhouses: Moving fruit/vegetable crates, seedling trays, manure, and fertilizer bags inside enclosed greenhouses and organic farms without exhaust fumes.
Food & Beverage Logistics: Transporting palletized goods in noise-restricted and emission-sensitive food processing plants or outdoor storage yards.
Urban & Eco-Construction Sites: Site cleanup, backfilling, and building material transport in low-emission urban construction zones.
Indoor & Outdoor Integrated Warehouses: Seamlessly transitioning between outdoor unpaved yards and indoor storage bays without changing machinery.
Why Choose Our YE Series?
Lower Total Cost of Ownership (TCO): Save up to 70–80% on energy costs compared to diesel forklifts, with zero engine oil, filter, or belt replacement expenses.
Factory Direct Quality: Built with high-tensile structural steel, heavy-duty axles, and IP-rated electric components for long operational life in harsh outdoor weather.
Quiet & Operator Friendly: Low vibration and quiet electric operation drastically reduce operator fatigue and improve job site safety awareness.
Reliable Technical Support: Fast global delivery of spare electrical parts and direct online technical assistance.
