Heavy Duty Timber Log Grapple Attachment for Wheel Loader Wood Handling
The Heavy Duty Timber Log Grapple Attachment is a robust hydraulic material handling tool designed to transform standard wheel loaders into high-efficiency forestry and timber processing machines. Engineered for heavy-duty log loading, timber sorting, and wood mill operations, this grapple series covers various jaw opening widths (from 1400 mm up to 2400 mm) to fit loader models ranging from 935 to 946 series. Built with high-tensile structural steel and heavy hydraulic cylinders, it delivers firm clamping forces to ensure safe and stable transit of raw logs, lumber packs, and forestry residue.
Heavy Duty Timber Log Grapple Attachment for Wheel Loader Wood Handling Specifications :
| Price | Contact us |
| Place of Origin | China |
| Min.Order Quantity | 1 |
| Payment Terms | OEM、ODM、OBM |
| Supply Ability | 1000 |
| Delivery Detail | one month |
Heavy Duty Timber Log Grapple Attachment for Wheel Loader Wood Handling Detail Introduction :
| Model Code | Attachment Type / Description | Width (mm) | Tooth Length (mm) | Opening Width (mm) | Closed Diameter (mm) | Compatible Loader Class |

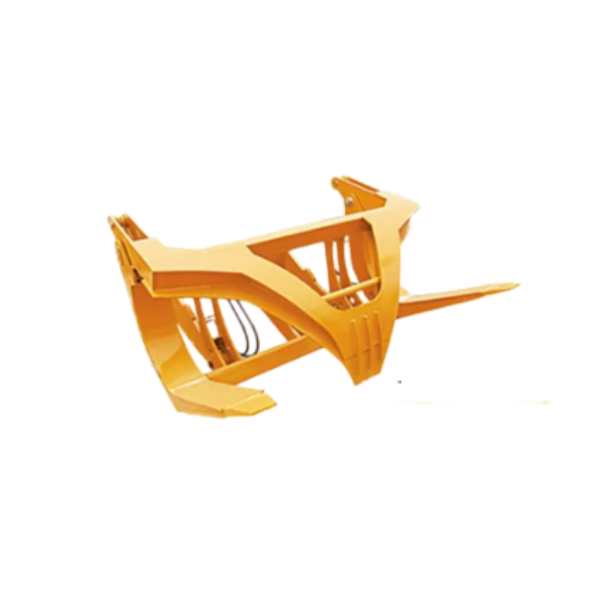

| 001 | Log Grapple / Timber Clamp | 1540 | 900 (Length) | 1400 | — | 935 – 946 Series |

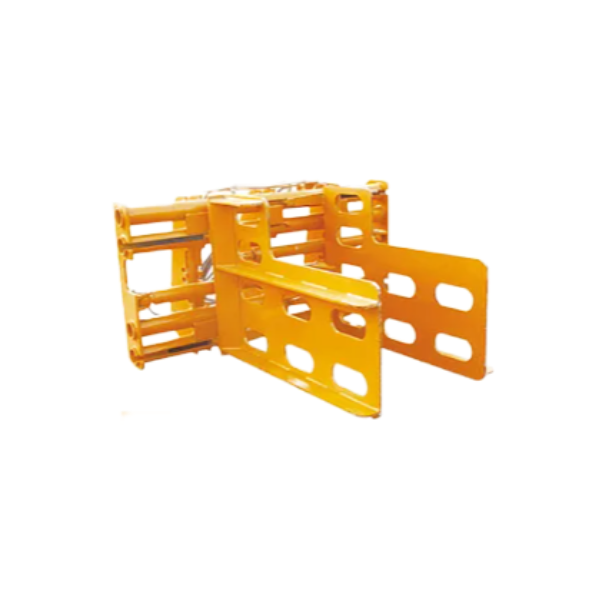

| 005 | High-Capacity Timber Clamp | — | — | 1800 / 2400 | 700 / 800 | 935 – 936 / 938 – 946 |

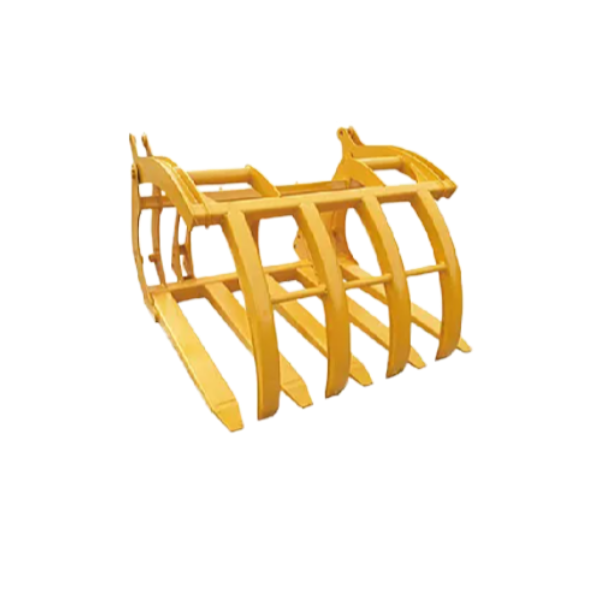

| 006A | Multi-Tooth Timber Grapple | 1550 | 975 | 1650 | — | 1800/2000/2200 mm Loader Width |
| 006B | Heavy Multi-Tooth Timber Grapple | 1550 | 1200 | 1900 | — | 1800/2000/2200 mm Loader Width |
| 006D | Reinforced Wood Grapple | 1350 | 1000 | 1450 | — | Standard Wheel Loaders |
| 006E | Heavy-Duty Log Grapple | 1450 | 1070 | 1860 | — | 936 & Above Series |

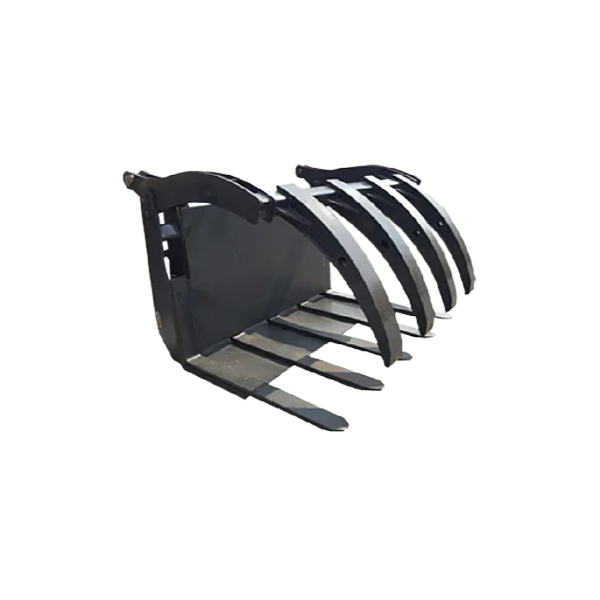

| 008 | Timber Grapple with Backplate | 1550 | 1070 (Length) | — | — | 936 – 946 Series |

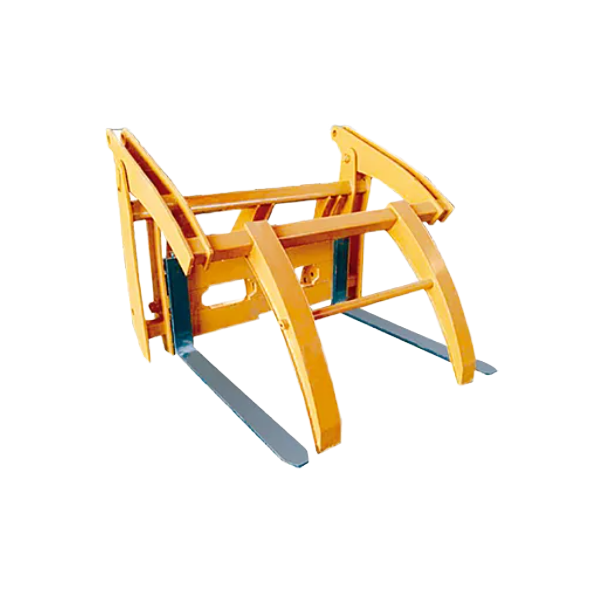

| 009 | Dual-Tooth Timber Grapple | 1550 | 1070 (Length) | — | — | 935 – 946 Series |
| 013A | Heavy Multi-Tooth Wood Clamp | 1550 | 1200 | 1900 | — | 1800/2000/2200 mm Loader Width |
| 013B | Extended Multi-Tooth Wood Clamp | 1550 | 1100 | 2000 | — | 1800/2000/2200 mm Loader Width |
Multi-Jaw & Tooth Structural Options: Available in various configurations including single-tooth clamps (001), high-opening grapples (005), multi-tooth timber grabs (006A/006B/006D/006E), and backplate-supported log buckets (008) to handle diverse wood sizes.
Wide Clamping Opening & High Capacity: Features jaw openings ranging from 1400 mm to 2400 mm and closed diameters down to 700 mm – 800 mm, enabling secure gripping of both large-diameter timber logs and bundled branches.
Reinforced Hydraulic Cylinders: Equipped with heavy-duty hydraulic drive cylinders and wear-resistant jaw teeth to withstand continuous shock loads during forestry unloading and yard stacking.
Optimal Loader Compatibility: Custom-engineered mounting brackets offer direct pin-on or quick-hitch integration with popular 935, 936, 938, 939, and 946 class wheel loaders.
Clear Operator Sightline: Open-frame backrest structure allows loader operators clear forward visibility of jaw teeth and log engagement points, maximizing loading safety.
Product Applications
Forestry & Timber Logging Yards: Unloading raw timber logs from haul trucks, sorting logs by diameter, and feeding sawmill conveyors.
Paper & Pulp Manufacturing: Transporting raw wood logs and pulpwood bundles to processing hoppers.
Wood Biomass & Recycling Plants: Handling brushwood, tree stumps, and bulk forestry waste.
Why Choose Us?
Industrial Grade Steel Build: Constructed from high-strength abrasion-resistant steel plates with reinforced pivot points for long service life.
Factory Direct Customization: Tailored jaw tooth lengths, mounting dimensions, and hydraulic fitting options supplied straight from the production line.
Enhanced Safety & Profitability: High clamping stability drastically lowers timber slip risks and speeds up truck turnaround times.
