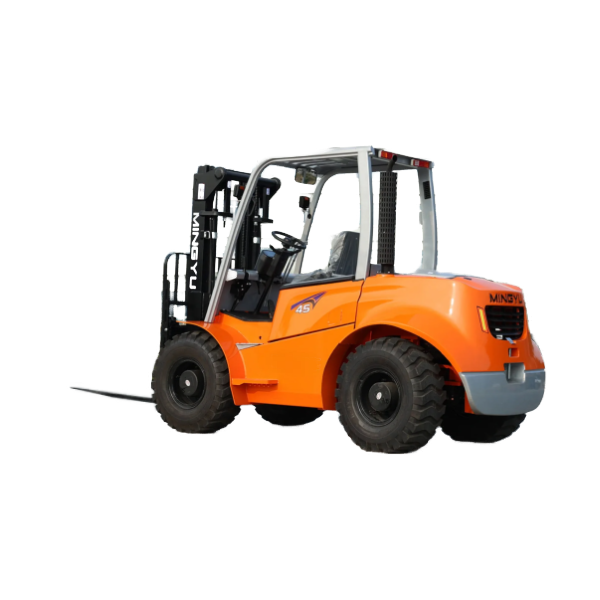

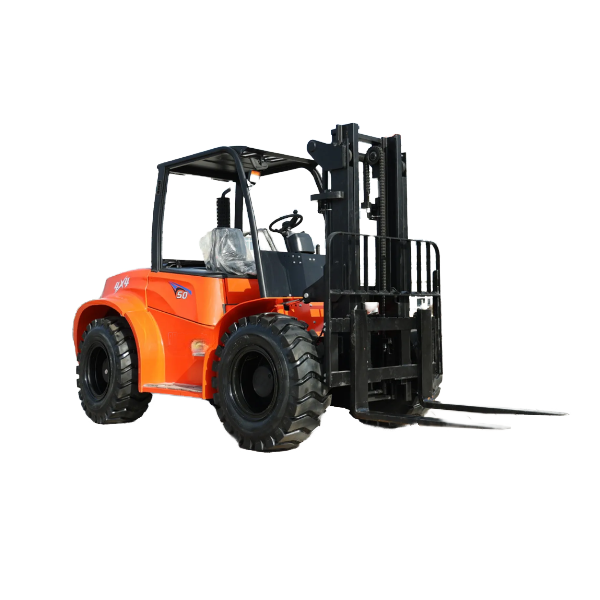

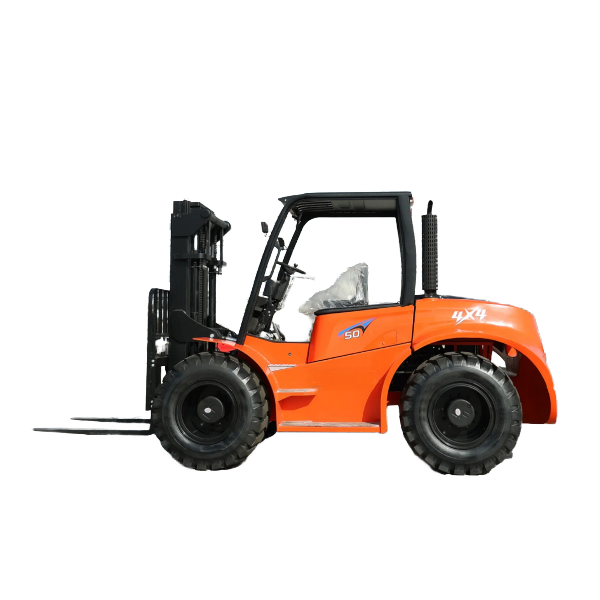

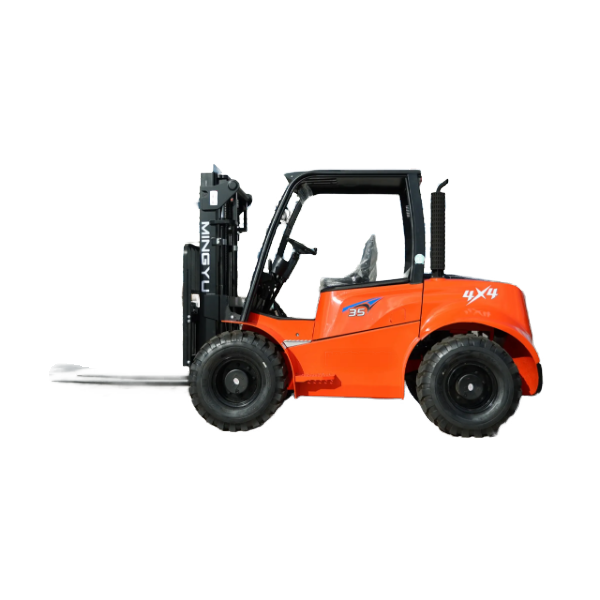

Y Series Heavy Duty Diesel Rough Terrain Forklift 3.5Ton to 5Ton IC Counterbalanced Off-Road Forklift
The Y Series Heavy Duty Diesel Rough Terrain Forklift is an internal combustion (IC) counterbalanced off-road forklift engineered for heavy-duty outdoor lifting, rough material handling, and demanding site operations. Ranging in payload capacity from 3.5 tons to 5.0 tons, the Y Series combines high-torque diesel performance with a low center of gravity and rugged pneumatic tires. Designed to navigate unpaved construction sites, timber yards, stone quarries, and agricultural facilities, it ensures reliable daily productivity under harsh environmental conditions.
Y Series Heavy Duty Diesel Rough Terrain Forklift 3.5Ton to 5Ton IC Counterbalanced Off-Road Forklift Specifications :
| Price | Contact us |
| Place of Origin | China |
| Min.Order Quantity | 1 |
| Payment Terms | OEM、ODM、OBM |
| Supply Ability | 1000 |
| Delivery Detail | one month |
Y Series Heavy Duty Diesel Rough Terrain Forklift 3.5Ton to 5Ton IC Counterbalanced Off-Road Forklift Detail Introduction :
Our Y Series product line offers three heavy-duty configurations built for high stability and power:
Y35 IC Counterbalanced Rough Terrain Forklift (3.5 Ton Capacity): Engineered for agile heavy lifting with a 3500 kg rated capacity, 3000 mm standard lifting height, 285 mm ground clearance, and a 36.8 kW V28A-50C42 diesel engine. Features a compact body length of 3235 mm (without forks) for versatile site handling.
Y45 IC Counterbalanced Rough Terrain Forklift (4.5 Ton Capacity): Delivers an increased payload of 4500 kg with a 600 mm load center distance, 290 mm high ground clearance, and a 3835 mm turning radius. Powered by a 36.8 kW diesel engine designed for heavy material stacking.
Y50 IC Counterbalanced Rough Terrain Forklift (5.0 Ton Capacity): The heavy-duty flagship model featuring a 5000 kg rated capacity, 325 mm high ground clearance, 36.8 kW V35A-50C42 diesel engine, and wider 16/70-20 pneumatic tires for maximum stability on unpaved surfaces.
| Category | Unit | Y35 | Y45 | Y50 |
| Power Type | — | Diesel Oil | Diesel Oil | Diesel Oil |
| Rated Lifting Capacity | kg | 3500 | 4500 | 5000 |
| Load Center Distance | mm | 500 | 600 | 500 |
| Engine Model | — | V28A-50C42 | V28A-50C42 | V35A-50C42 |
| Engine Rated Power | kW | 36.8 | 36.8 | 36.8 |
| Rated Speed | r/min | 2400 | 2400 | 2400 |
| Standard Lifting Height | mm | 3000 | 3000 | 3000 |
| Min. Ground Clearance | mm | 285 | 290 | 325 |
| Min. Turning Radius | mm | 3720 | 3835 | 4325 |
| Gantry Tilt Angle (Front/Rear) | degree | Front 10° / Back 12° | Front 10° / Back 12° | Front 10° / Back 12° |
| Max. Driving Speed (Full Load) | km/h | 28 | 28 | — |
| Max. Climbing Slope (Full Load) | % | 30 | 30 | 30 |
| Overall Weight | kg | 5390 | 5430 | 7500 |
| Length (Without Fork) | mm | 3235 | 3315 | 3755 |
| Overall Width | mm | 1590 | 1590 | 1840 |
| Roof Guard Height | mm | 2370 | 2425 | 2585 |
| Tire Type / Size (Front & Rear) | — | Pneumatic / 12-16.5 | Pneumatic / 20.5 | Pneumatic / 16/70-20 |
Product Highlights & Key Features
Heavy-Duty Diesel Power: Powered by high-torque V28A/V35A series diesel engines operating at 2400 r/min, providing steady climbing power (30% max slope capability) and smooth lifting performance.
High Ground Clearance: Exceptional ground clearances of 285 mm to 325 mm allow the chassis to clear rocks, mud ruts, and uneven job site obstacles easily.
Rugged Pneumatic Off-Road Tires: Large pneumatic tires (up to 16/70-20) ensure high traction, vibration absorption, and stability over loose gravel and muddy terrain.
High Stability Counterbalanced Chassis: Low center of gravity paired with a wide track width (1260 mm to 1480 mm) ensures secure lifting and carrying on uneven slopes.
Wide-View Gantry Mast: Features a $10^\circ / 12^\circ$ front/back gantry tilt angle for safe load handling on inclines, providing operators with clear forward visibility.
Ergonomic Operator Station: Seated driving style with overhead guard protection (up to 2585 mm guard height), clear dashboard display, and intuitive hydraulic control levers.
Product Applications
Construction & Infrastructure: Moving heavy concrete blocks, steel rebar, timber beams, and masonry materials across unpaved building sites.
Stone Quarries & Mining: Transporting stone slabs, heavy machinery parts, and aggregate bags over rough terrain.
Timber Yards & Sawmills: Carrying heavy lumber pallets, timber logs, and wood packaging.
Ports & Heavy Storage Yards: Loading and unloading heavy freight containers and machinery in outdoor gravel storage yards.
Why Choose Our Y Series?
Factory Direct Value: Robust industrial manufacturing delivering premium performance at competitive factory-direct pricing.
Heavy-Duty Structural Durability: Reinforced gantry frames, high-strength drive axles, and heavy-duty counterweights built for long operational service lives.
Easy Maintenance Access: Accessible engine hood and centralized hydraulic service points simplify routine daily maintenance.
Global After-Sales Support: Rapid global spare parts delivery and direct technical assistance.
